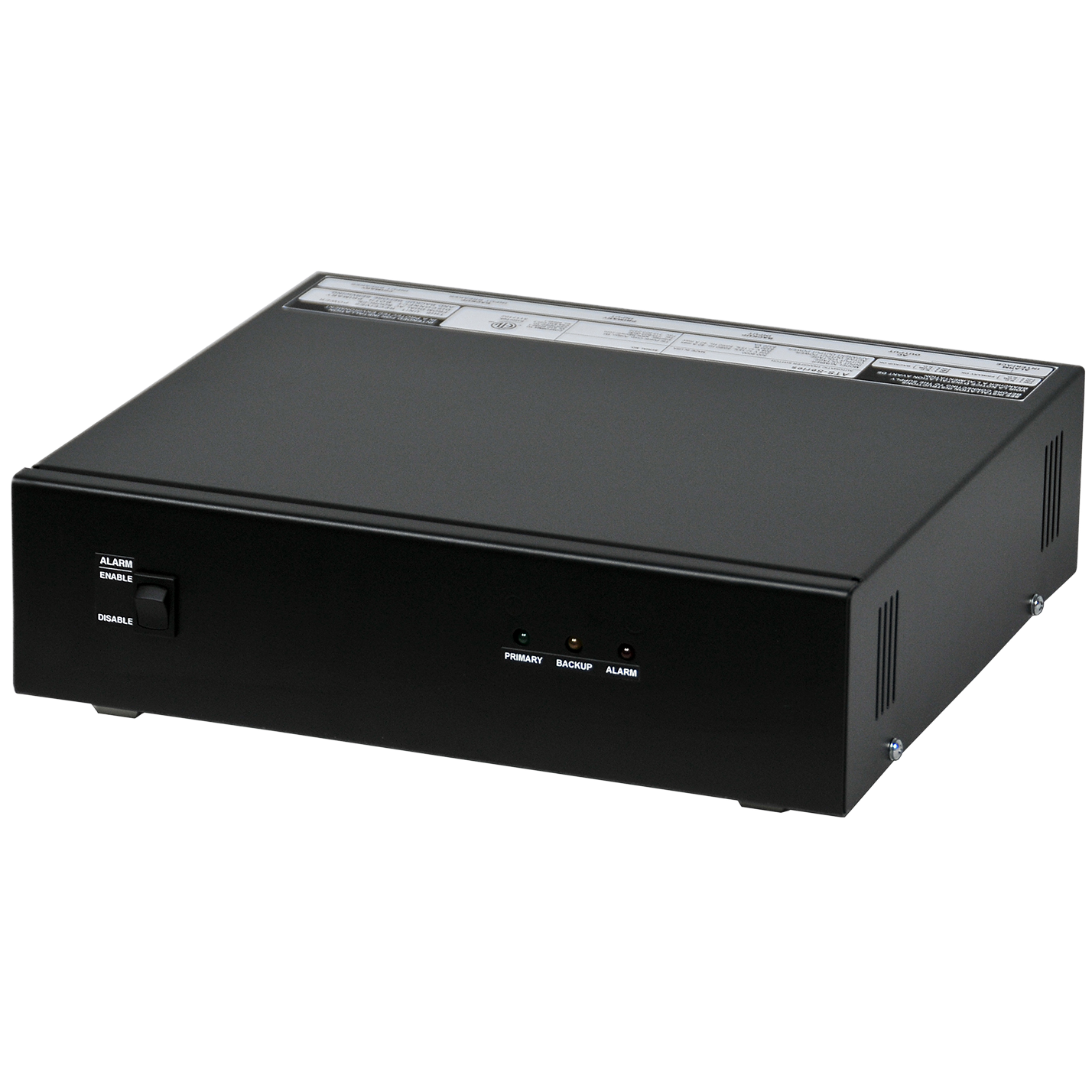

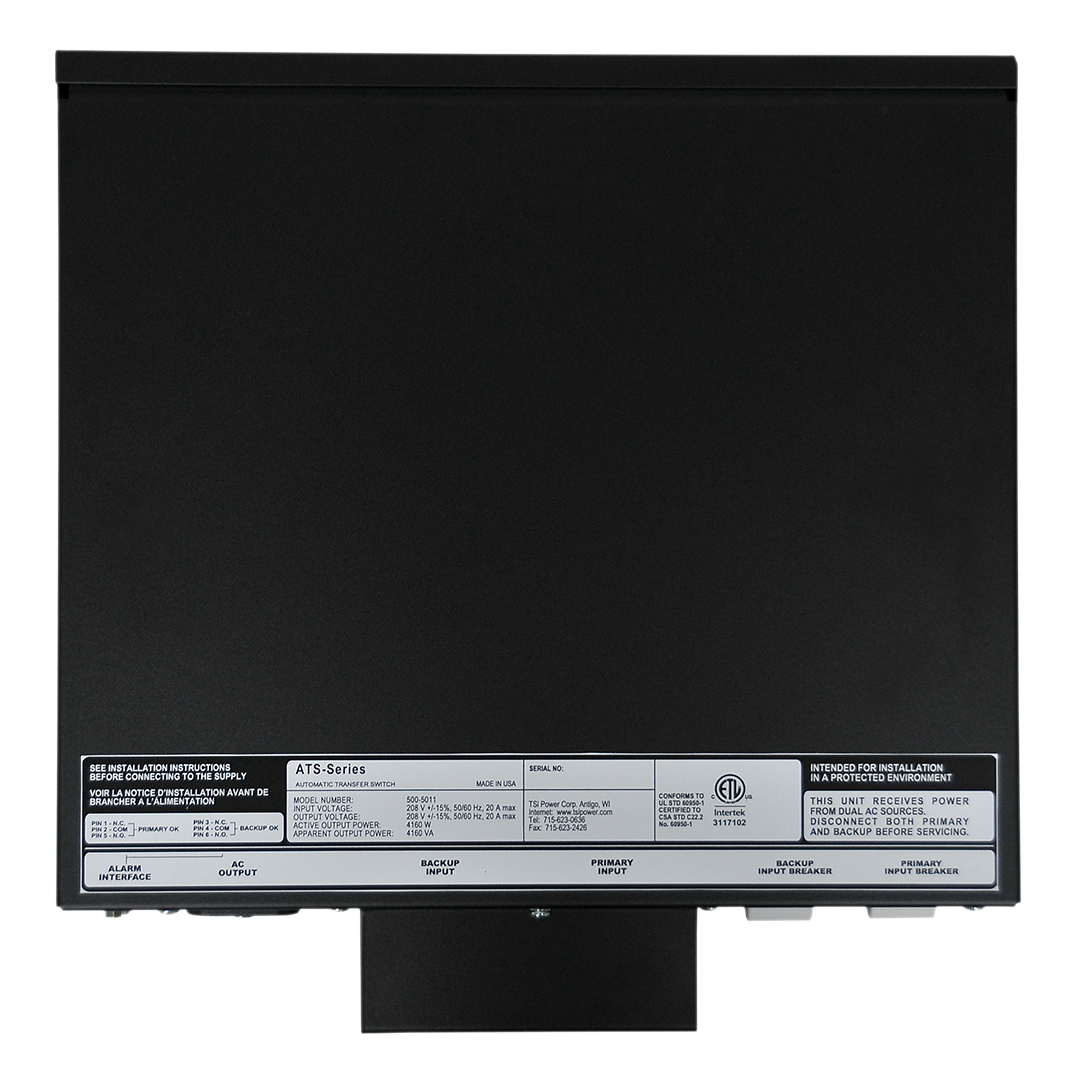

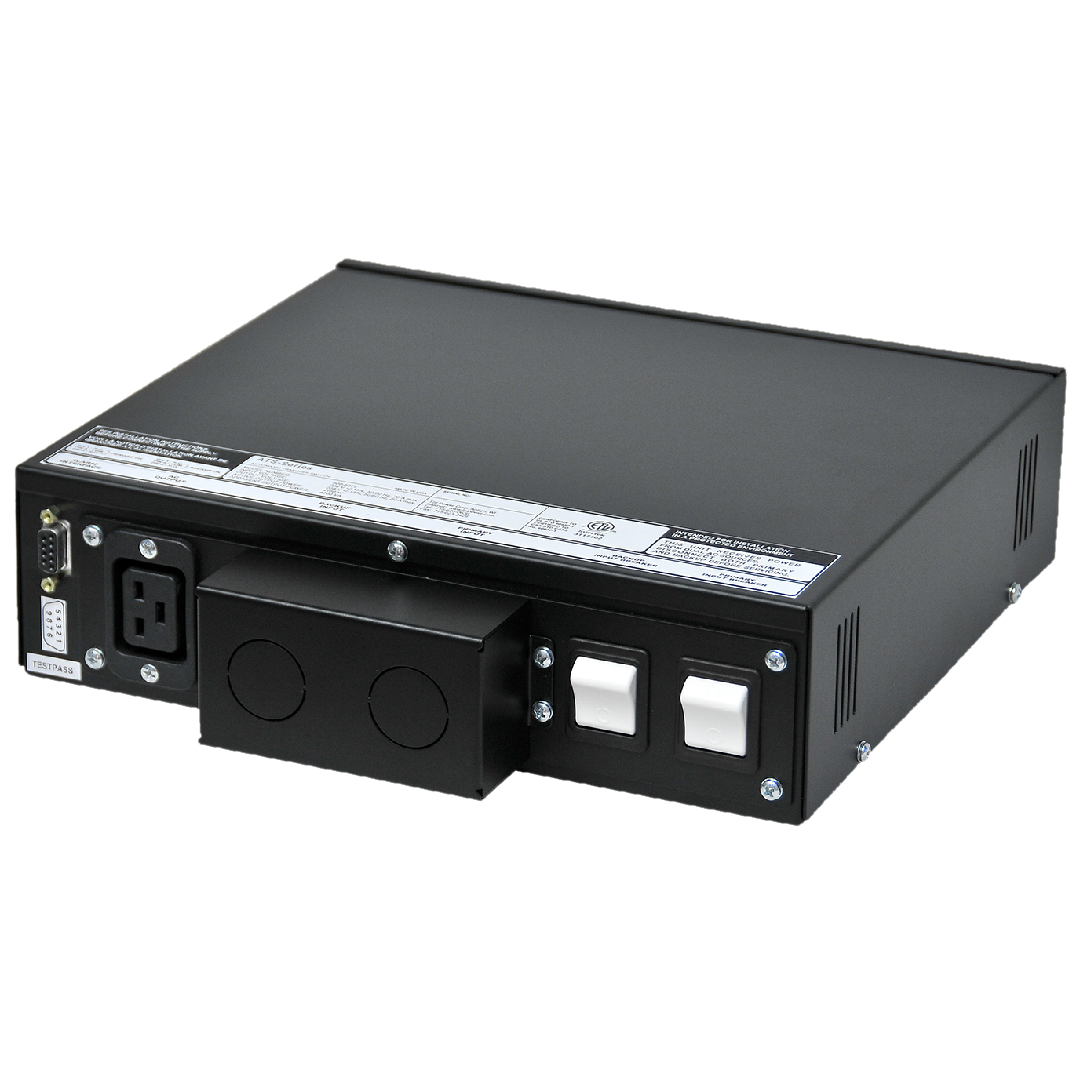

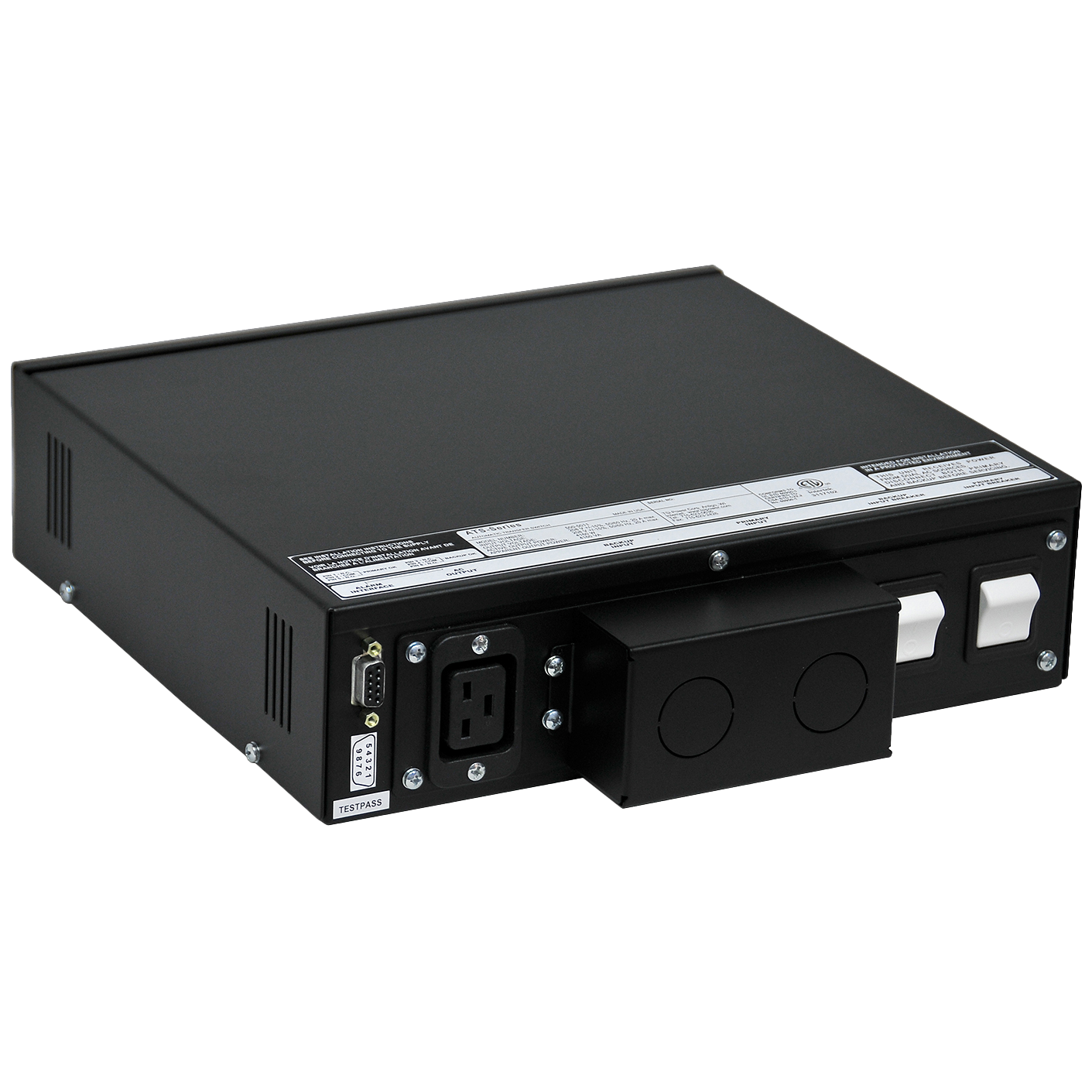

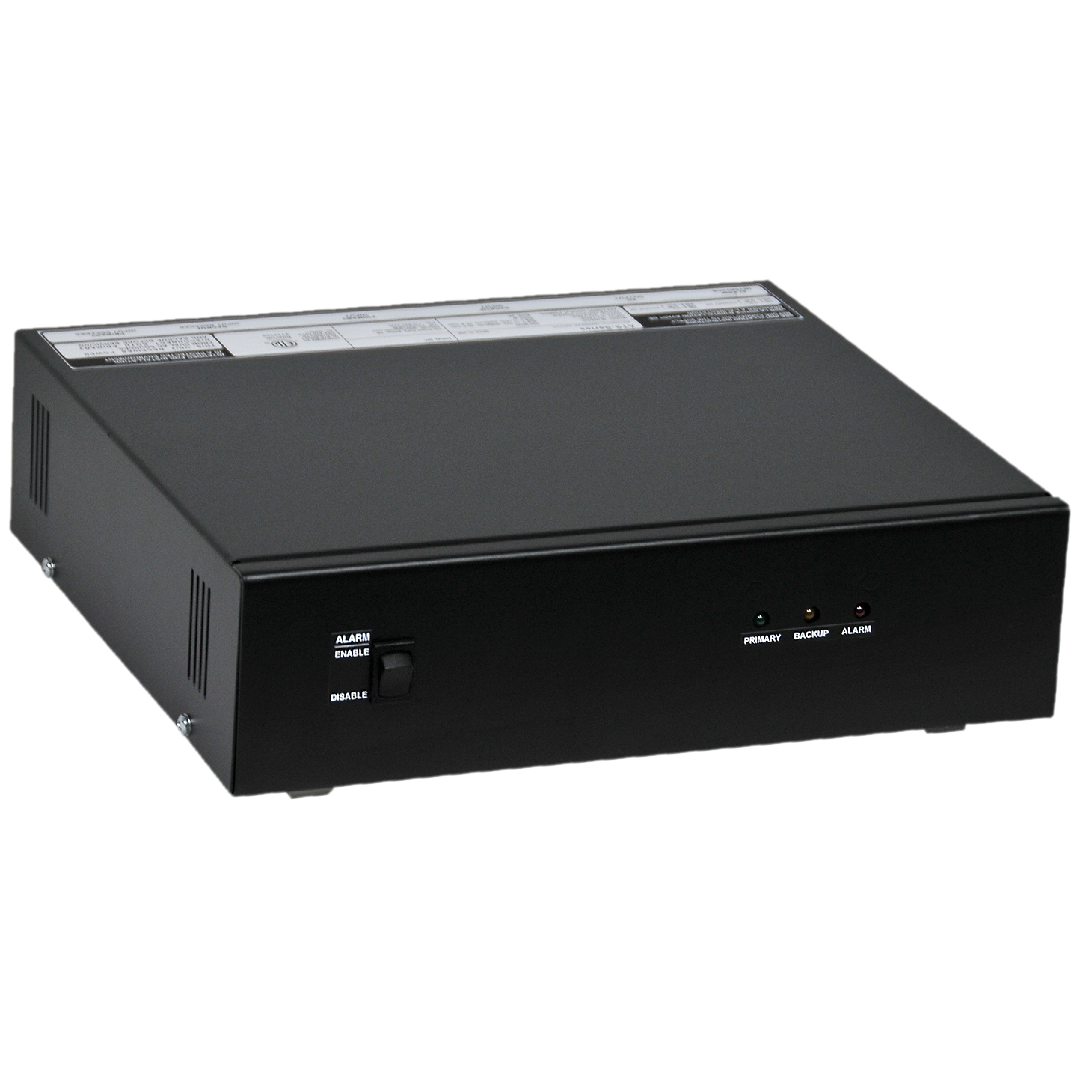

ATS-500
ATS-500
The ATS-500 series of automatic transfer switches is designed for applications where two or more autonomous power sources are available. The ATS can be utilized as single or multiple units for different levels of redundancy and is designed to be a cost-effective alternative to the ATS-1000. Applications include industrial control, automatic test equipment, oil exploration and utilities
ETL Listed
Part Numbers
120 Volts ETL/cETL Listed
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-500-2000
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-4000
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-6000
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-8000
|
40A
|
Hard-wired
|
Hard-wired
|
NEMA Straight Blade
| Part Number | Current | Input | Output |
|
ATS-500-2002
|
15A
|
NEMA 5-15P
|
4x NEMA 5-15R
|
|
ATS-500-4002
|
20A
|
NEMA 5-20P
|
4x NEMA 5-20R
|
|
ATS-500-6002
|
30A
|
NEMA 5-30P
|
1x NEMA 5-30R
|
NEMA Twist-lock
| Part Number | Current | Input | Output |
|
ATS-500-2003
|
15A
|
NEMA L5-15P
|
1x NEMA L5-15R
|
|
ATS-500-4003
|
20A
|
NEMA L5-20P
|
1x NEMA L5-20R
|
|
ATS-500-6003
|
30A
|
NEMA L5-30P
|
1x NEMA L5-30R
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-500-2004
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-500-4004
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
208 Volts ETL/cETL Listed
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-500-3800
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-5800
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-7800
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-9800
|
40A
|
Hard-wired
|
Hard-wired
|
NEMA Straight Blade
| Part Number | Current | Input | Output |
|
ATS-500-3802
|
15A
|
NEMA 6-15P
|
2x NEMA 6-15R
|
|
ATS-500-5802
|
20A
|
NEMA 6-20P
|
2x NEMA 6-20R
|
|
ATS-500-7802
|
30A
|
NEMA 6-30P
|
1x NEMA 6-30R
|
NEMA Twist-lock
| Part Number | Current | Input | Output |
|
ATS-500-3803
|
15A
|
NEMA L6-15P
|
1x NEMA L6-15R
|
|
ATS-500-5803
|
20A
|
NEMA L6-20P
|
1x NEMA L6-20R
|
|
ATS-500-7803
|
30A
|
NEMA L6-30P
|
1x NEMA L6-30R
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-500-3804
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-500-5804
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-500-5811
|
20A
|
Hard-wired
|
1x IEC320 C19
|
|
ATS-500-5813
|
20A
|
NEMA L6-20P
|
4 Ft. Pigtail
|
220 – 240 Volts ETL/cETL Listed
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-500-3000
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-5000
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-7000
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-9000
|
40A
|
Hard-wired
|
Hard-wired
|
NEMA Straight Blade
| Part Number | Current | Input | Output |
|
ATS-500-3002
|
15A
|
NEMA 6-15P
|
2x NEMA 6-15R
|
|
ATS-500-5002
|
20A
|
NEMA 6-20P
|
2x NEMA 6-20R
|
|
ATS-500-7002
|
30A
|
NEMA 6-30P
|
1x NEMA 6-30R
|
NEMA Twist-lock
| Part Number | Current | Input | Output |
|
ATS-500-3003
|
15A
|
NEMA L6-15P
|
1x NEMA L6-15R
|
|
ATS-500-5003
|
20A
|
NEMA L6-20P
|
1x NEMA L6-20R
|
|
ATS-500-7003
|
30A
|
NEMA L6-30P
|
1x NEMA L6-30R
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-500-3004
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-500-5004
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-500-5011
|
20A
|
Hard-wired
|
1x IEC320 C19
|
|
ATS-500-5013
|
20A
|
NEMA L6-20P
|
4 Ft. Pigtail
|
230 Volts CE Marked
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-500-3900
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-5900
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-7900
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-500-9900
|
40A
|
Hard-wired
|
Hard-wired
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-500-3904
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-500-5904
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-500-5911
|
20A
|
Hard-wired
|
1x IEC320 C19
|
