ATS-800
ATS-800

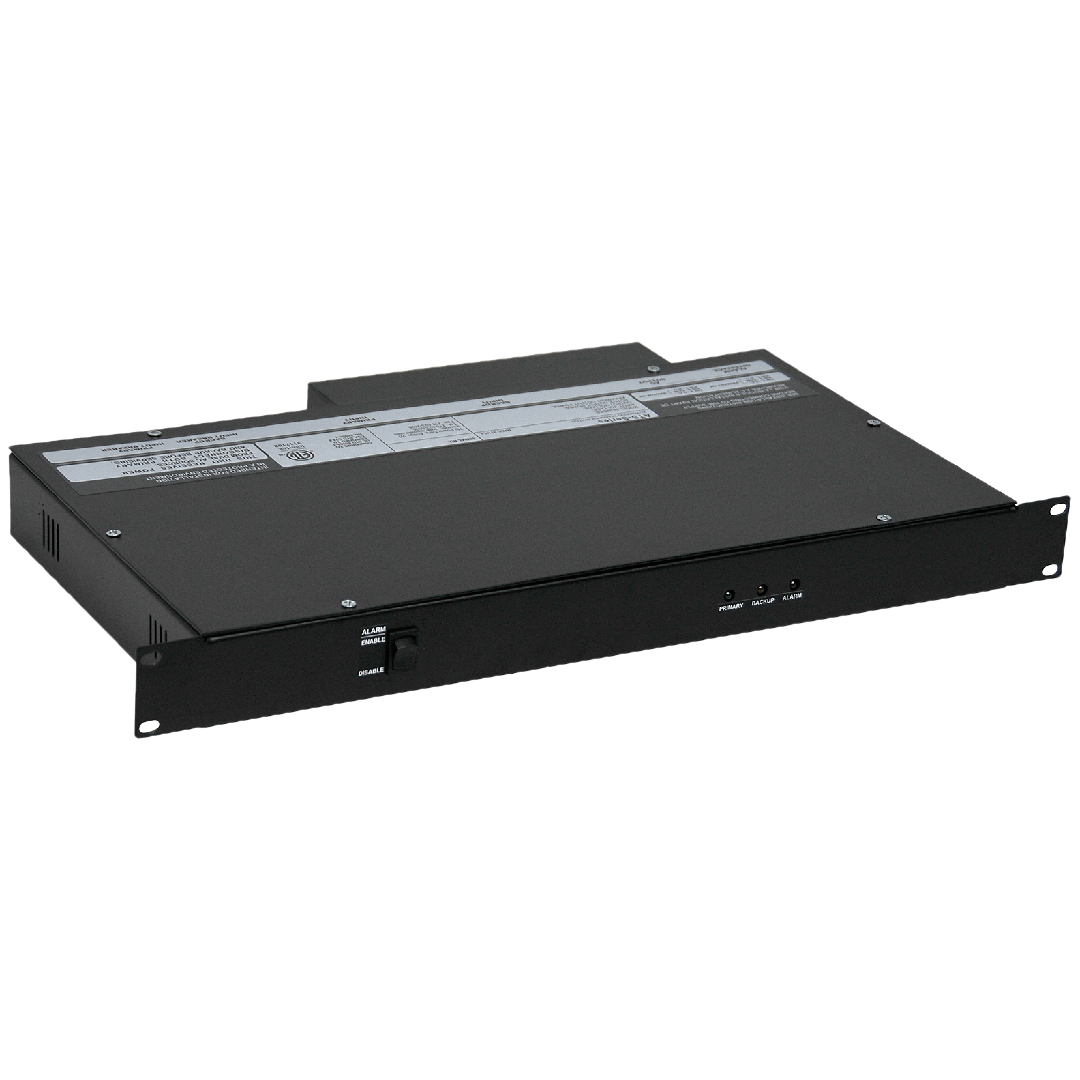

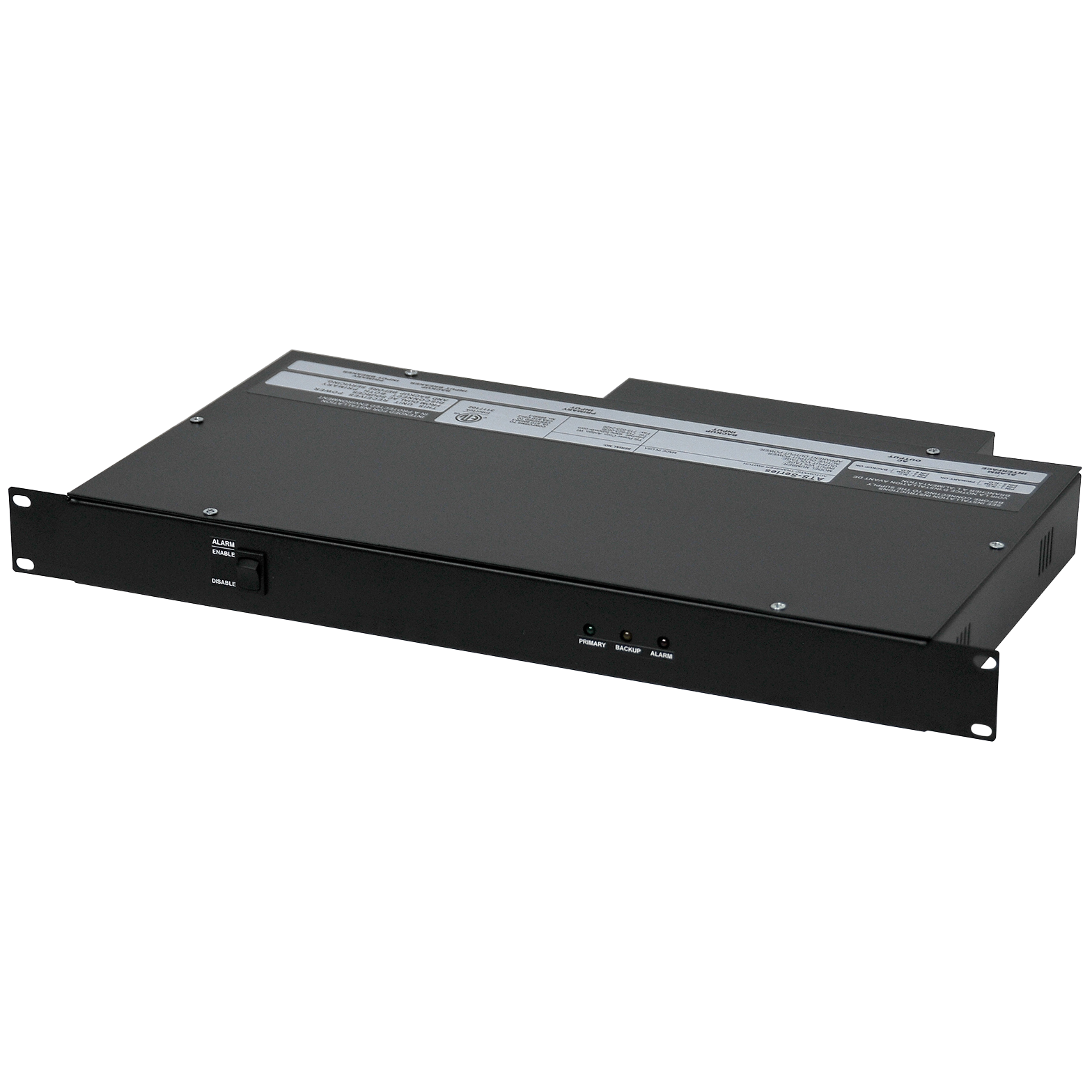

1U fast automatic transfer switch
The ATS-800 series of 1-RU fast automatic transfer switches is designed for applications where two or more autonomous power sources are available. The ATS can be utilized as single or multiple units for different levels of redundancy. The ATS-800 is specifically designed as a low-cost ATS for limited rack space thanks to its 1-RU height. Applications include industrial control, automatic test equipment, data centers, oil exploration, and utilities.
ETL Listed & CE Marked
Part Numbers
120 Volts ETL/cETL Listed
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-800-2000
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-4000
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-6000
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-8000
|
40A
|
Hard-wired
|
Hard-wired
|
NEMA Straight Blade
| Part Number | Current | Input | Output |
|
ATS-800-2002
|
15A
|
NEMA 5-15P
|
4x NEMA 5-15R
|
|
ATS-800-4002
|
20A
|
NEMA 5-20P
|
4x NEMA 5-20R
|
NEMA Twist-lock
| Part Number | Current | Input | Output |
|
ATS-800-2003
|
15A
|
NEMA L5-15P
|
1x NEMA L5-15R
|
|
ATS-800-4003
|
20A
|
NEMA L5-20P
|
1x NEMA L5-20R
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-800-2004
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-800-4004
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-800-4005
|
20A
|
Hard-wired
|
2x NEMA 5-20R
|
208 Volts ETL/cETL Listed
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-800-3800
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-5800
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-7800
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-9800
|
40A
|
Hard-wired
|
Hard-wired
|
NEMA Straight Blade
| Part Number | Current | Input | Output |
|
ATS-800-3802
|
15A
|
NEMA 6-15P
|
2x NEMA 6-15R
|
|
ATS-800-5802
|
20A
|
NEMA 6-20P
|
2x NEMA 6-20R
|
NEMA Twist-lock
| Part Number | Current | Input | Output |
|
ATS-800-3803
|
15A
|
NEMA L6-15P
|
1x NEMA L6-15R
|
|
ATS-800-5803
|
20A
|
NEMA L6-20P
|
1x NEMA L6-20R
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-800-3804
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-800-5804
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-800-5811
|
20A
|
Hard-wired
|
1x IEC320 C19
|
220 – 240 Volts ETL/cETL Listed
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-800-3000
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-5000
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-7000
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-9000
|
40A
|
Hard-wired
|
Hard-wired
|
NEMA Straight Blade
| Part Number | Current | Input | Output |
|
ATS-800-3002
|
15A
|
NEMA 6-15P
|
2x NEMA 6-15R
|
|
ATS-800-5002
|
20A
|
NEMA 6-20P
|
2x NEMA 6-20R
|
NEMA Twist-lock
| Part Number | Current | Input | Output |
|
ATS-800-3003
|
15A
|
NEMA L6-15P
|
1x NEMA L6-15R
|
|
ATS-800-5003
|
20A
|
NEMA L6-20P
|
1x NEMA L6-20R
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-800-3004
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-800-5004
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-800-5011
|
20A
|
Hard-wired
|
1x IEC320 C19
|
230 Volts CE Marked
Hard-wired
| Part Number | Current | Input | Output |
|
ATS-800-3900
|
15A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-5900
|
20A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-7900
|
30A
|
Hard-wired
|
Hard-wired
|
|
ATS-800-9900
|
40A
|
Hard-wired
|
Hard-wired
|
IEC 60320
| Part Number | Current | Input | Output |
|
ATS-800-3904
|
15A
|
IEC320 C14
|
4x IEC320 C13
|
|
ATS-800-5904
|
20A
|
IEC320 C20
|
2x IEC320 C19
|
Mixed Input/Output
| Part Number | Current | Input | Output |
|
ATS-800-5911
|
20A
|
Hard-wired
|
1x IEC320 C19
|
