Outdoor DC UPS 8009
Outdoor DC UPS 8009

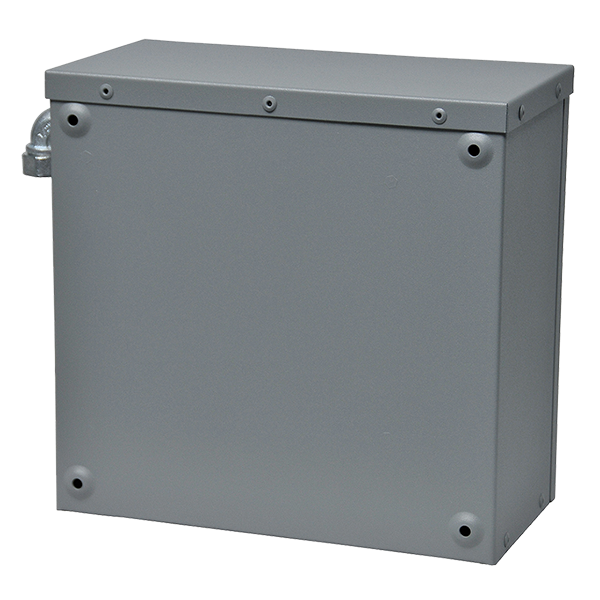

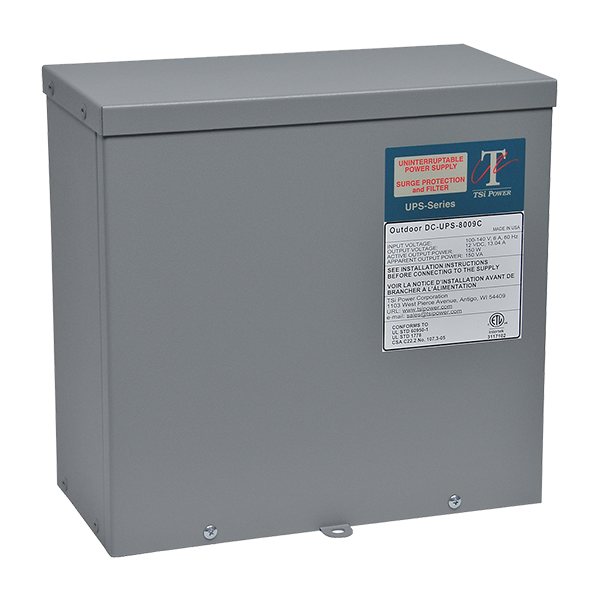

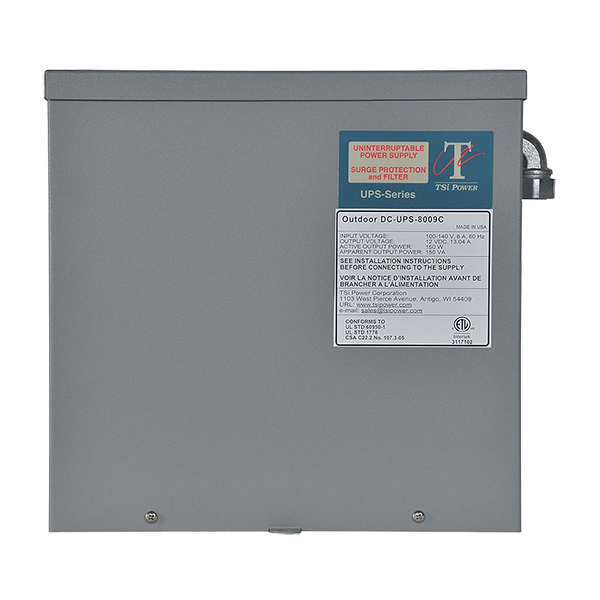

The Outdoor DC UPS 8009 is a small, economical 100 - 140 Vac input DC UPS with available 12 & 24 Vdc outputs for usage in North America. It is housed in a NEMA-3R / IP 54 powder coated galvannealed steel chassis suitable for wall and unistrut mounting, and an optional pole-mounting kit is also available.
TSI Power has over fifteen years of experiences in designing and manufacturing custom DC UPS units for all manner of applications.
Contact us today for a no-obligation consultation and quotation from an experienced sales engineer.
| Part Number | Power | Battery Bank | Backup Time | Recharge Time | Dimensions (W x H x D) | Weight | Safety Listing | Battery Heater | Pole-Mount Kit | Pad-Mount Kit |
|
8009A
|
60 w / 12 V Vdc output
|
12 V 12 Ah
|
69 min
|
4 hrs
|
12.5" (318 mm) x 12" (305 mm) x 6.5" (165 mm)
|
30 lbs (13.6 kg)
|
ETL/cETL |
BH5
|
PM1
|
--
|
|
8009B
|
100 w / 24 V Vdc output
|
24 V 7 Ah
|
43 min
|
14 hrs
|
12.5" (318 mm) x 12" (305 mm) x 6.5" (165 mm)
|
32 lbs (14.5 kg)
|
ETL/cETL |
BH5
|
PM1
|
--
|
|
8009C
|
150 w / 12 V Vdc output
|
12 V 14 Ah
|
24 min
|
4 hrs
|
12.5" (318 mm) x 12" (305 mm) x 6.5" (165 mm)
|
32 lbs (14.5 kg)
|
ETL/cETL |
BH5
|
PM1
|
--
|
|
8009D
|
150 w / 24 V Vdc output
|
24 V 7 Ah
|
24 min
|
10 hrs
|
12.5" (318 mm) x 12" (305 mm) x 6.5" (165 mm)
|
32 lbs (14.5 kg)
|
ETL/cETL |
BH5
|
PM1
|
--
|
