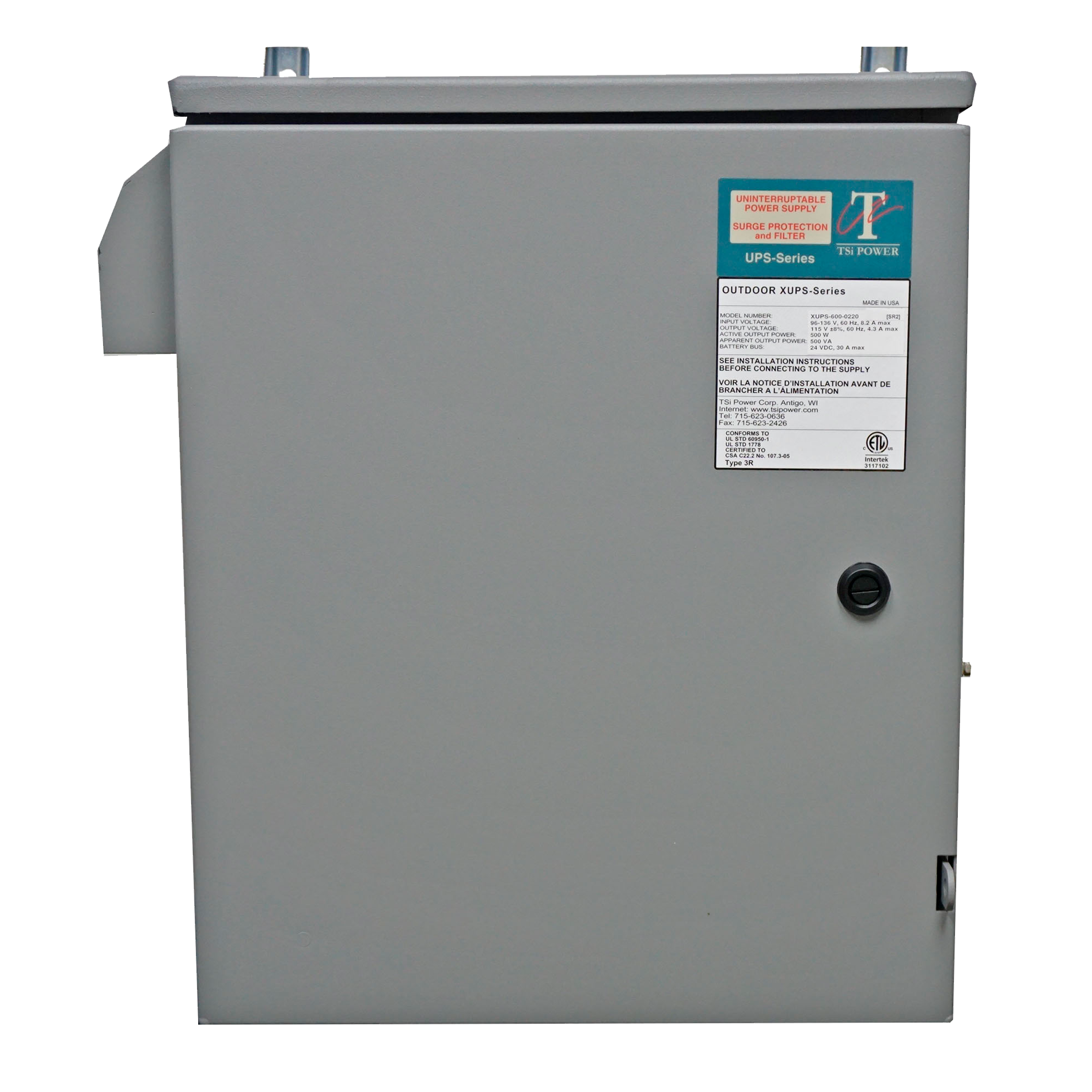

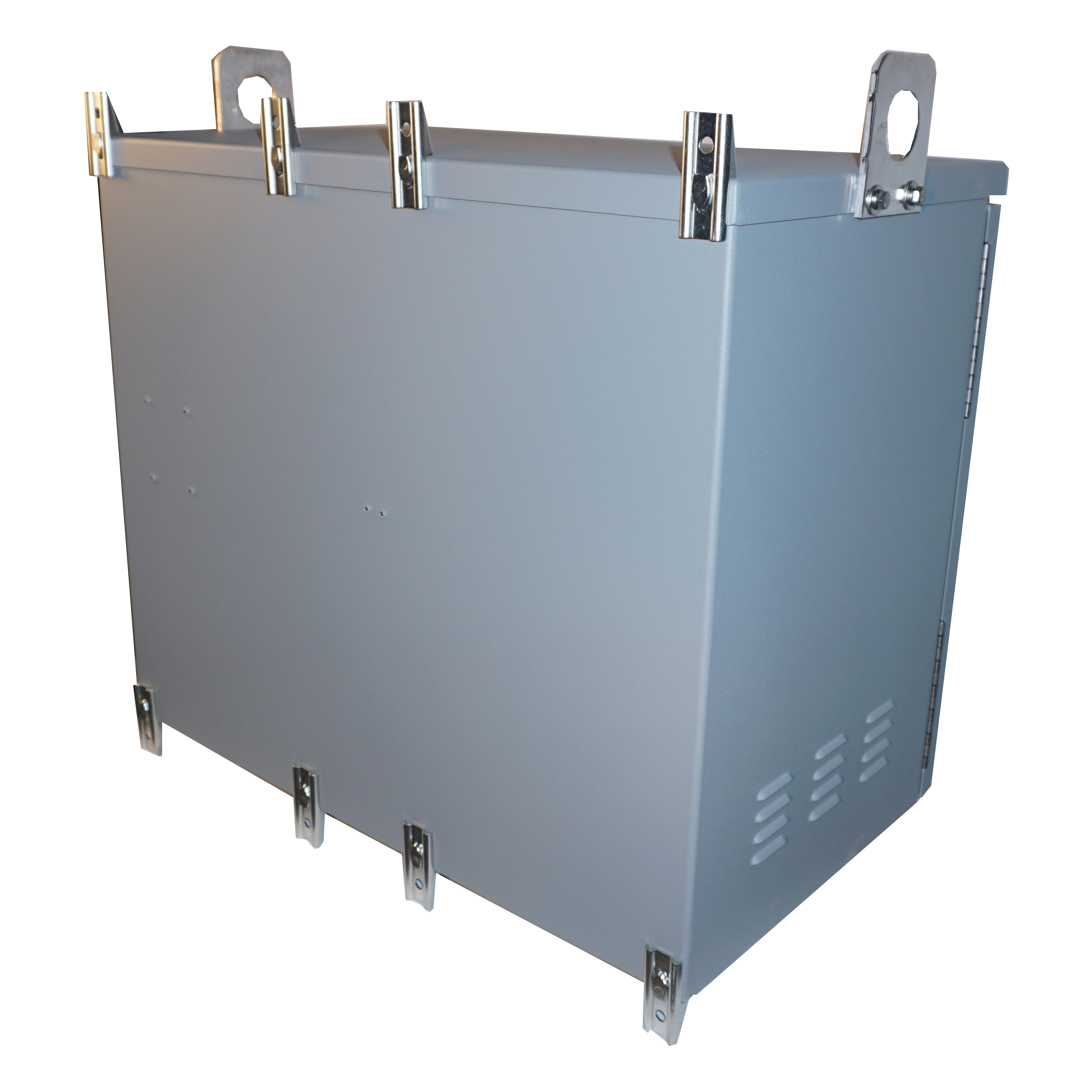

Outdoor XUPS 120 volts 60 Hz
Outdoor XUPS 120 volts 60 Hz
120 V 60 Hz line-interactive outdoor UPS for North America
120 V 60 Hz Outdoor XUPS models are intended for operation in the US & Canada. 127V 60Hz models for operation in Mexico are available upon request.

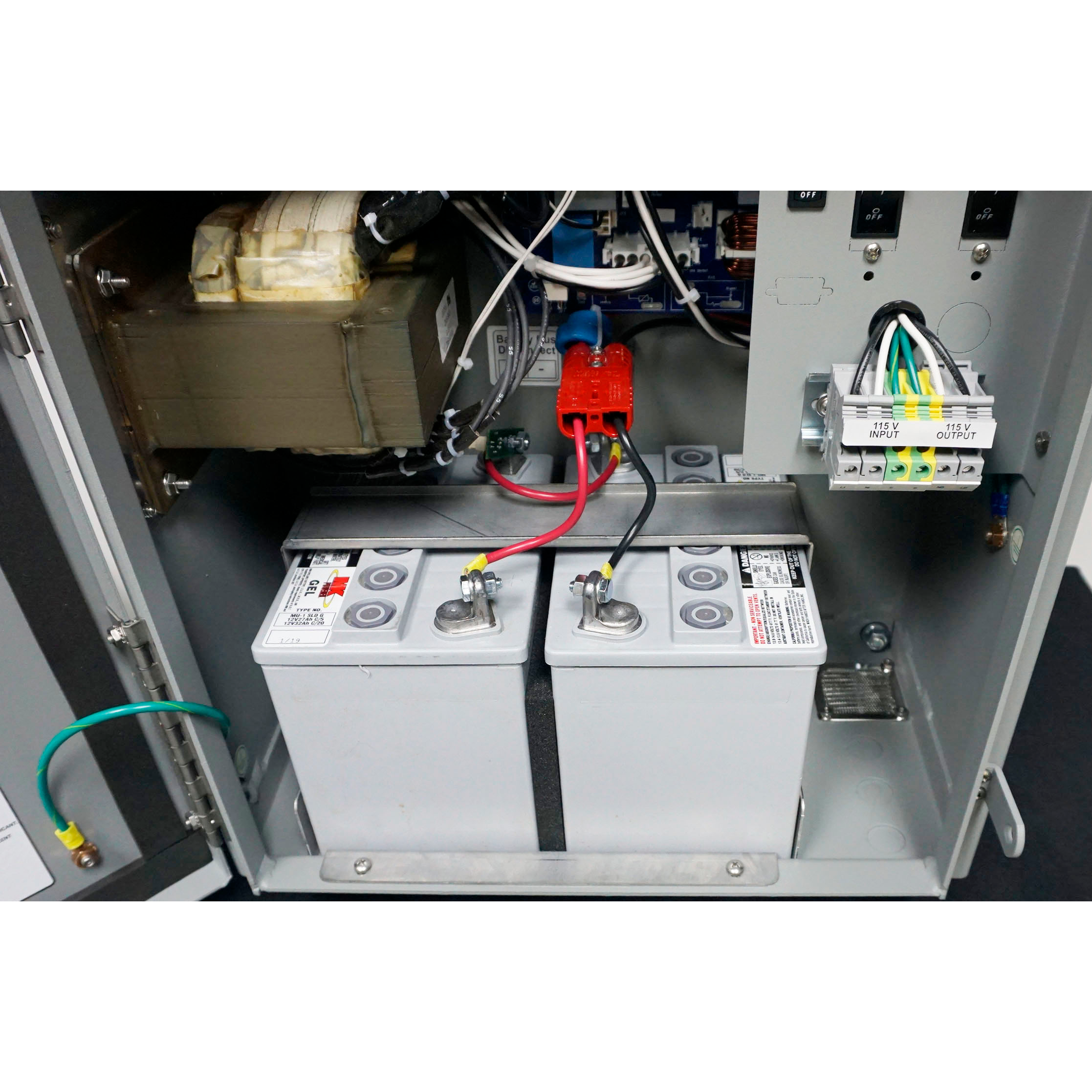

Compact
| Part Number | Power | Battery Bank | Backup Time | Recharge Time | Dimensions (W x H x D) | Weight | Safety Listing | Battery Heater | Pole-Mount Kit | Pad-Mount Kit |
|
Outdoor XUPS-600-0220
|
500 w
|
24V 31.6Ah
|
34 min
|
5 hr 3 min
|
16.5 x 20.5 x 9.5"
|
100 lbs
|
ETL/cETL |
BH5
|
PM9
|
--
|
|
Outdoor XUPS-1000-0220
|
840 w
|
24V 31.6Ah
|
14 min
|
5 hr 3 min
|
16.5 x 20.5 x 9.5"
|
103 lbs
|
ETL/cETL |
BH5
|
PM9
|
--
|
|
Outdoor XUPS-1500-0120
|
1050 w
|
48V 17.2Ah
|
13 min
|
7 hr
|
16.5 x 20.5 x 9.5"
|
110 lbs
|
ETL/cETL |
2x BH5
|
PM9
|
--
|
|
Outdoor XUPS-2200-0120
|
1540 w
|
48V 17.2Ah
|
8 min
|
7 hr
|
16.5 x 20.5 x 9.5"
|
115 lbs
|
-- |
2x BH5
|
PM9
|
--
|
Plus
| Part Number | Power | Battery Bank | Backup Time | Recharge Time | Dimensions (W x H x D) | Weight | Safety Listing | Battery Heater | Pole-Mount Kit | Pad-Mount Kit |
|
Outdoor XUPS-600-0340
|
500 w
|
24V 63.2Ah
|
1 hr 27 min
|
9 hr 10 min
|
24 x 24 x 12"
|
169 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD1
|
|
Outdoor XUPS-1000-0340
|
840 w
|
24V 63.2Ah
|
40 min
|
9 hr 10 min
|
24 x 24 x 12"
|
171 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD1
|
|
Outdoor XUPS-1500-0340
|
1050 w
|
48V 31.6Ah
|
33 min
|
9 hr 10 min
|
24 x 24 x 12"
|
178 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD1
|
Extended
| Part Number | Power | Battery Bank | Backup Time | Recharge Time | Dimensions (W x H x D) | Weight | Safety Listing | Battery Heater | Pole-Mount Kit | Pad-Mount Kit |
|
Outdoor XUPS-600-0560
|
500 w
|
24V 147.2Ah
|
4 hr 20 min
|
14 hr
|
24 x 24 x 17.125"
|
315 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD2
|
|
Outdoor XUPS-1000-0560
|
840 w
|
24V 147.2Ah
|
2 hr 25 min
|
14 hr
|
24 x 24 x 17.125"
|
315 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD2
|
|
Outdoor XUPS-1500-0560
|
1050 w
|
48V 73.6Ah
|
2 hr
|
14 hr
|
24 x 24 x 17.125"
|
315 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD2
|
|
Outdoor XUPS-2200-0560
|
1540 w
|
48V 73.6Ah
|
1 hr 10 min
|
14 hr
|
24 x 24 x 17.125"
|
315 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD2
|
|
Outdoor XUPS-3000-0560
|
2250 w
|
48V 73.6Ah
|
38 min
|
14 hr
|
24 x 24 x 17.125"
|
320 lbs
|
ETL/cETL |
2x BH5
|
PM1
|
PAD2
|
Large
| Part Number | Power | Battery Bank | Backup Time | Recharge Time | Dimensions (W x H x D) | Weight | Safety Listing | Battery Heater | Pole-Mount Kit | Pad-Mount Kit |
|
Outdoor XUPS-600-0780
|
500 w
|
24V 195.2Ah
|
6 hr 5 min
|
18 hr
|
28.77 x 24 x 17.125"
|
392 lbs
|
ETL/cETL |
2x BH5
|
PM4
|
PAD2
|
|
Outdoor XUPS-1000-0780
|
840 w
|
24V 195.2Ah
|
3 hr 20 min
|
18 hr
|
28.77 x 24 x 17.125"
|
392 lbs
|
ETL/cETL |
2x BH5
|
PM4
|
PAD2
|
|
Outdoor XUPS-1500-0780
|
1050 w
|
48V 97.6Ah
|
2 hr 45 min
|
18 hr
|
28.77 x 24 x 17.125"
|
392 lbs
|
ETL/cETL |
2x BH5
|
PM4
|
PAD2
|
|
Outdoor XUPS-2200-0780
|
1540 w
|
48V 97.6Ah
|
1 hr 40 min
|
18 hr
|
28.77 x 24 x 17.125"
|
392 lbs
|
ETL/cETL |
2x BH5
|
PM4
|
PAD2
|
|
Outdoor XUPS-3000-0780
|
2250 w
|
48V 97.6Ah
|
1 hr 3 min
|
18 hr
|
28.77 x 24 x 17.125"
|
398 lbs
|
ETL/cETL |
2x BH5
|
PM4
|
PAD2
|
XL
| Part Number | Power | Battery Bank | Backup Time | Recharge Time | Dimensions (W x H x D) | Weight | Safety Listing | Battery Heater | Pole-Mount Kit | Pad-Mount Kit |
|
Outdoor XUPS-600-0890
|
500 w
|
24V 366Ah
|
12 hr
|
56 hr
|
36 x 36 x 13.5"
|
680 lbs
|
-- |
2x BH5 Double
|
PM3
|
PAD4
|
|
Outdoor XUPS-1000-0890
|
840 w
|
24V 366Ah
|
6 hr 45 min
|
56 hr
|
36 x 36 x 13.5"
|
680 lbs
|
-- |
2x BH5 Double
|
PM3
|
PAD4
|
|
Outdoor XUPS-1500-0890
|
1050 w
|
48V 183Ah
|
3 hr 30 min
|
56 hr
|
36 x 36 x 13.5"
|
680 lbs
|
-- |
2x BH5 Double
|
PM3
|
PAD4
|
|
Outdoor XUPS-2200-0890
|
1540 w
|
48V 183Ah
|
2 hr 15 min
|
56 hr
|
36 x 36 x 13.5"
|
680 lbs
|
-- |
2x BH5 Double
|
PM3
|
PAD4
|
|
Outdoor XUPS-3000-0890
|
2250 w
|
48V 183Ah
|
2 hr 23 min
|
56 hr
|
36 x 36 x 13.5"
|
710 lbs
|
-- |
2x BH5 Double
|
PM3
|
PAD4
|
